Forks / Accessories Cane Creek Helm Works Series Air Fork 29″

Cane Creek Helm Works Series Air Fork 29″
Weight optimized for shorter travel bikes
Maintains Helm’s 7 way adjustable suspension
High speed compression, Low speed compression, Low speed rebound, Air volume adjust (8-position Internal indexed system), Independent positive air spring, Independent negative air spring, Indexed travel adjust system, Max travel 130mm

The HELM Work Series is equipped with all-new, enhanced parts including a hollow anodized shorter offset crown, bolt-on D-Loc axle, high speed compression Climb Switch, and optimized internals including both a shorter compression rod and damper rod. However, the HELM Works Series shares the same 35mm stanchions as the HELM 27.5 and HELM 29 forks, making it stiffer than its competition.

SPECIFICATIONS
Axle/Hub spacing 15x110mm TA Boost
Rake 44mm
Color Grey
Spring Type Air
Steerer Tube 1-1/8”-1.5” (Tapered)
Travel 130mm / 120mm
Wheel Diameter 29”
Brake Type Disc
Damping Adjustments High Speed Compression, Low Speed Compression, Low Speed Rebound
Crown Material Aluminum
Maximum Rotor Size 180mm
Maximum Tire Width 64mm
Spring Adjustments Air pressure, 8 position volume reduction
Steerer Tube Material Aluminum
Lower Tubes Material Magnesium
Stanchions Material Aluminum
Stanchions Diameter 35mm
Fork Weight 1999g
D-Loc� 15mm thru axle Bolt-On/ 110mm Boost/ 44mm reduced offset crown

FEATURES

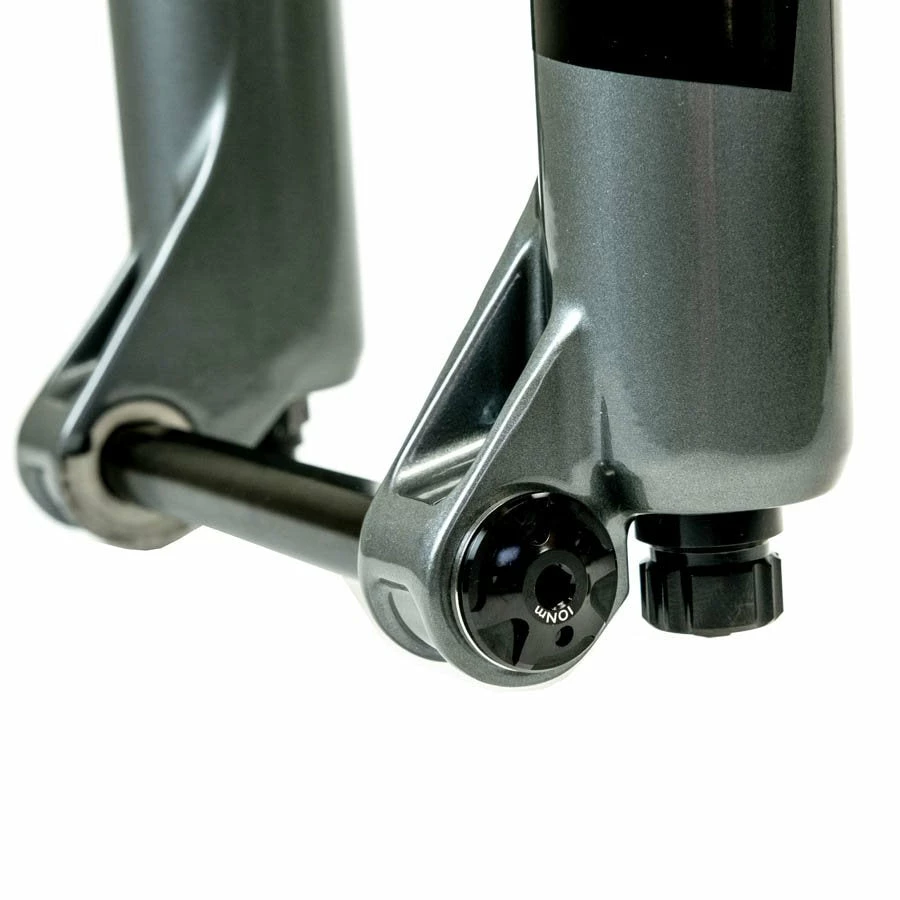

D-Loc Axle Assembly:
5mm Bolt-on Axle
Fast and easy keyed entry axle and lock system
Eliminates unwanted rotational and torsional axle forces

Air Volume Adjustment:
Accessory-Free adjustment
8 levels of volume reduction

Versatile Air Spring
Thoughtfully isolated positive and negative air chambers for ultimate tuning
Internal travel reduction possible with 10mm top-out spacers

130mm VENDOR ITEM # BAG0561
UPC: 840226075884

120mm VENDOR ITEM # BAG0559
