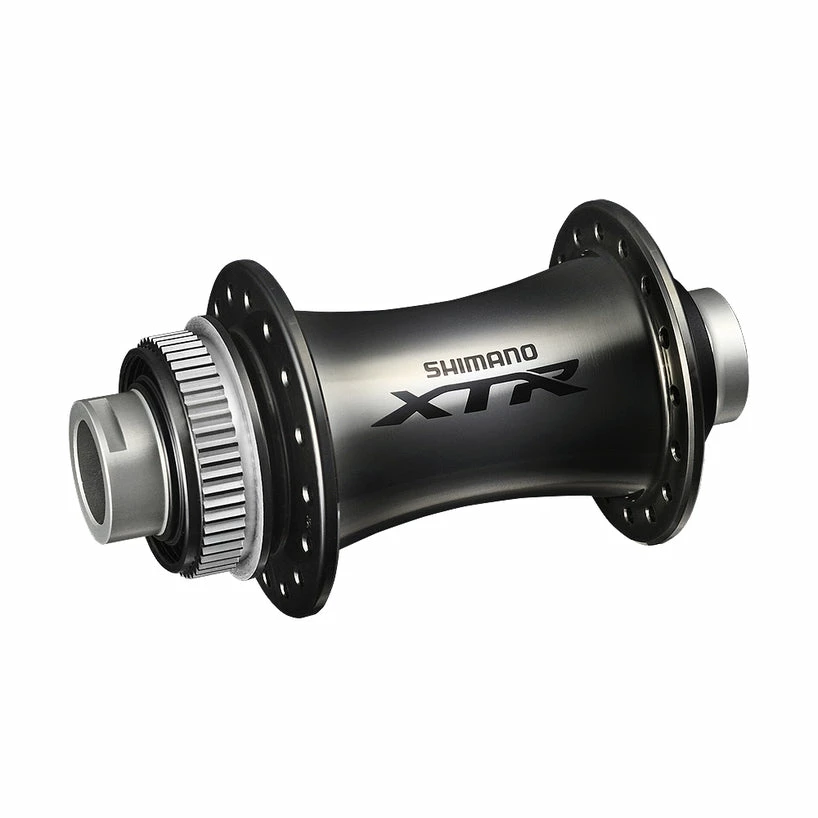

Shimano XTR HB M9010 Center Lock Disc Front Hub 15x100mm

Shimano XTR HB M9010 CenterLock Disc Front Hub 15x100mm. Available in 32 or 28 Hole. With a new lightweight bearing & axle system, the reliability and performance you trust with Shimano hubs keep rolling with the updated XTR hubs.

SPECIFICATIONS
Series: XTR M9000
Size: 15mm x 100mm
Application: MTB, Cross Country, Cross Country Race, All Mountain, Trail, Enduro
Brake/Compatibility: centerlock disc (Lock Ring included) 6-bolt Disc with conversion adapter. Click here (Shimano part # SM RTAD05) Sold Separately.
Mount: 15mm thru axle (Shimano E-Thru) (Axle not included)
Over-Locknut-Dimension: 100mm
Hub Material: aluminium, anodized
Axle Material: aluminium, anodized
Spoke Hole Count: 32 / 28
Axle Length: 100mm
Bearings: stainless steel cup and cone
Weight: 155g
Color: Grey

Shimano Item # UPC
32 Hole EHBM9010B
UPC : 689228708914

28 Hole EHBM9010C
UPC : 689228708945

E-Thru
The tool-less type thru-axle skewer system optimizes rigidity and weight balance and enables easy operation with a reliable internal cam mechanism. The 15 mm thru-axle system is 15 % stiffer torsionally and 25 % stiffer in transverse shear than a traditional 9 mm quick release front axle system. High rigidity is secured while keeping the optimum weight balance. The E-thru axle hub system minimizes the distortion of suspension while staying lightweight for riding around sharp corners at high speeds.

Cup and Cone Bearings
Angular contact bearings of the cup & cone type offer greater strength than sealed cartridge industrial bearings due to their ability to displace lateral and vertical loads more effectively for super smooth rotation and longer durability. Angular contact bearings also allow easier maintenance, adjustability and serviceability.

Original Shimano parts guarantees that all components work perfectly for optimum performance and maximum safety and longevity.
